ZeeWeed Ultrafiltration
Description and Use
As a pioneer of membrane technology, Veolia leverages decades of research, development, and operational experience to offer the most advanced ultrafiltration technology in the market.

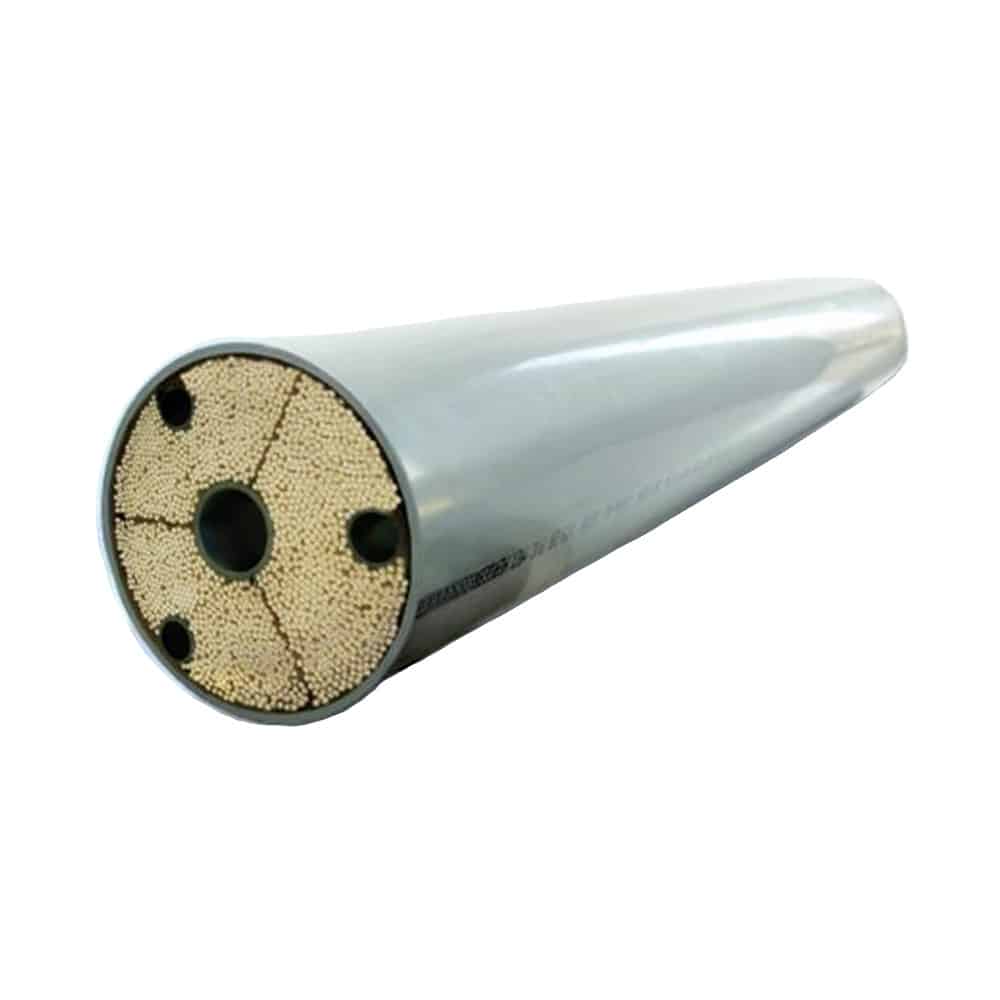

The ZeeWeed ZW700B-8060 line of products contains our SevenBore* fiber technology with an inside-out flow orientation. The SevenBore fiber is regarded as the most robust polyethersulfone (PES) product on the market.
General Properties
• UF membrane – for optimal removal of particulates, bacteria and viruses
• PES membrane fibers with 7 bores – provides high mechanical strength (>10x that of single fibers) and chemical resistance
• Inside-Out filtration – eliminates air scouring step and additional related equipment
• Contact Complete Water Solutions for detailed drawings and assistance with sizing and ordering element housings
Specifications
Specifications
| Manufacturer |
Veolia |
| Series |
ZeeWeed Ultrafiltration |
| Model Number |
ZW700B-8060/uf10/7b/x/0.8/40 |
| Description |
Product Specifications Element Data
Description: ZW700B-8060/UF10/7B/X/0.8/40
Material housing: PVC
Housing length: 1527 +/-1.0 mm (60.12 +/- 0.04 inch)
Permeate connection ID: 42.6 +/- 0.5 mm (1.68 +/-0.02 inch)
Element OD: 200 mm (7.87 inch)
Weight: 19 kg (42 lbs.)
Typical Process Conditions
Maximum operating temperature: 40°C (104°F)
Maximum operating pressure: *See specifications of membrane housing supplier
Trans Membrane Pressure (TMP), typ. operation: <1.0 bar (<14.5 psi)
TMP maximum: 2.5 bar (36 psi)
Backwash/forward flush: 250 lm2h (150 gfd)
pH range during operation: 2 to 11
Membrane Type
Material: PES
Type: SevenBore
Diameter bores ID: 0.8 mm (0.03 inch)
Area: 40 m2 (431 ft2)
Cleaning
Cleaning pH range: 1.0-13.0
Disinfecting Chemical: 50 to 200 ppm
Hypochlorite (NaOCl) Hydrogen Peroxide: 100 to 200 ppm |
