Description

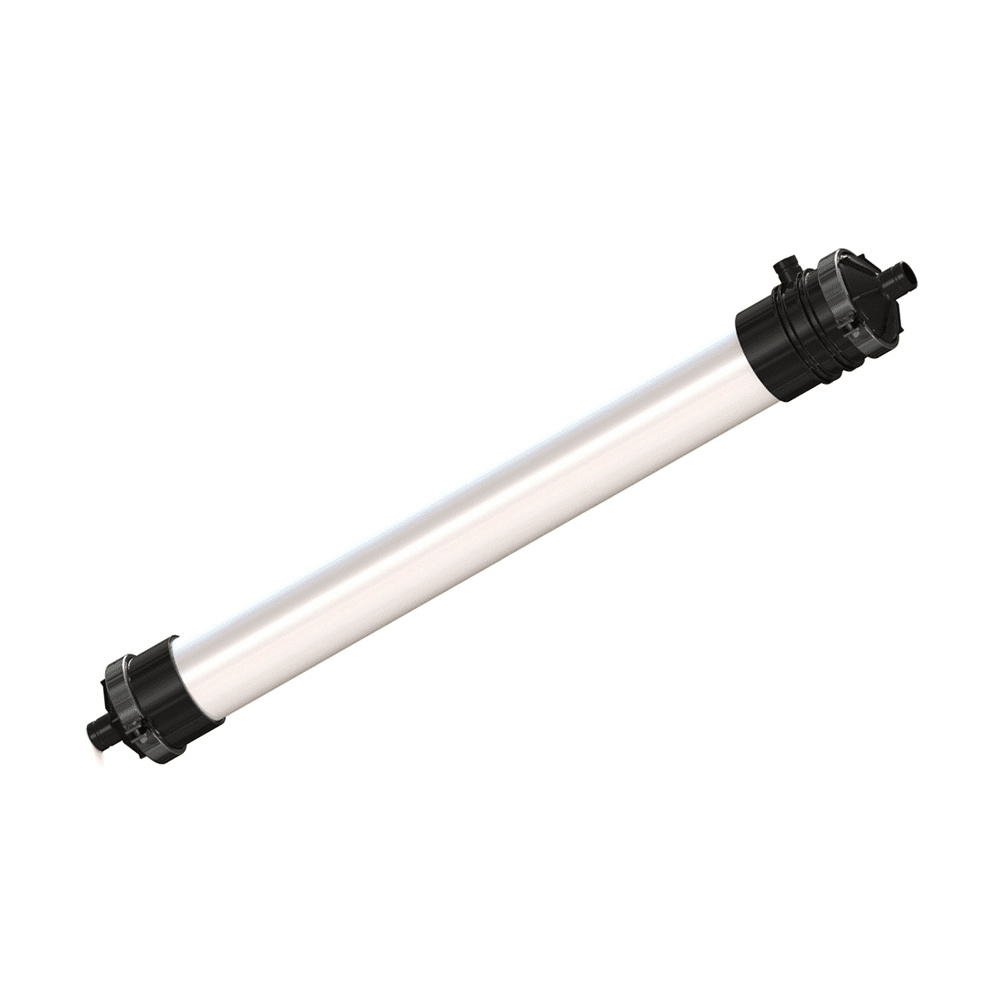

ZeeWeed Ultrafiltration

Description and Use

As a pioneer of membrane technology, Veolia leverages decades of research, development, and operational experience in developing one of the most advanced pressurized ultrafiltration technology in the market, ZeeWeed 1500. ZeeWeed systems are proven to consistently outperform conventional filtration technology while meeting or exceeding regulatory requirements, regardless of source water quality.

Typical Applications

Versatile and reliable, the pressurized ZeeWeed ZW1500 is ideally suited for use in numerous applications including drinking water treatment, tertiary filtration and RO pre-treatment for brackish water and seawater. Compared to granular filter media, ZeeWeed membranes produce superior water quality and are virtually unaffected by variable raw water quality – all at a cost comparable to conventional filtration technology.

General Properties

• 0.02 µm nominal pore diameter – for optimal removal of particulates, bacteria and viruses
• PVDF hollow fiber membrane – provides high mechanical strength and chemical resistance
• Outside-in filtration – provides uniform flow distribution and high solids tolerance

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Veolia
Series ZeeWeed Ultrafiltration
Model Number ZW1500
Description Nominal Membrane Surface Area: 55.7 m² (600 ft2)
Max ShippingWeight¹: 37 kg (80 lb)
Lifting Weight²: 30 - 46 kg (65 - 100 lb)
Membrane Material: PVDF
Nominal Pore Size: 0.02 micron
Nominal Fiber Diameter: OD 1.2 mm, ID: 0.66 mm
Flow Path: Outside-In
Housing Material: PVC housing with GRP caps
¹Packaged
²Varies with solids accumulation

Module Dimensions & Connections
Height: 1919 mm (75.6 in)
Diameter: 180 mm (7”)
Feed & Permeate: 2” (DN50) Victaulic
Reject: 1 ½” (DN40) Victaulic
System Integration: Module Racks

Operating Parameters
Performance
Flow range: 45 - 180 m³/day (8 - 33 gpm)

Operating Conditions
Max shell inlet pressure: 379 kPa (55 psi)
TMP range: 0 - 276 kPa (0 - 40 psi)
Max temperature: 40°C (104°F)
Operating pH: 5.0 - 10.0
Air scour flow: 5.1 m³/h (3 dcfm)
Backwash flow 1.8 m³/hr (8 gpm)

Cleaning
Cleaning pH range: 2.0 - 12.0
Max chlorine concentration: 1,000 mg/L (as NaOCl)³
³NOTE: Higher concentrations are possible depending on feedwater and pH.
