Description

ZeeWeed Ultrafiltration

Description and Use

As a pioneer of membrane technology, Veolia leverages decades of research, development, and operational experience to offer the most advanced ultrafiltration technology in the market.

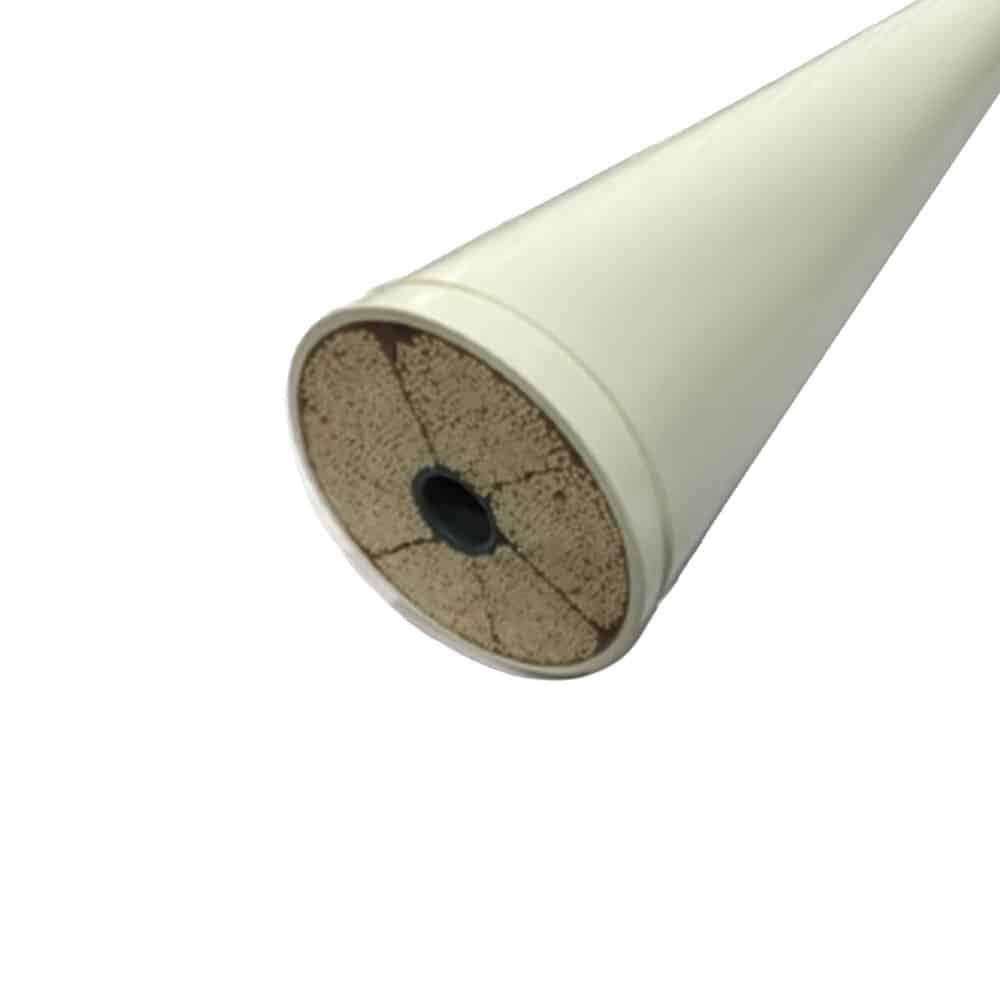

The ZeeWeed 700B-9060 line of products contains our SevenBore* fiber technology with an inside-out flow orientation. The SevenBore fiber is regarded as the most robust polyethersulfone (PES) product on the market.

General Properties

• UF membrane – for optimal removal of particulates, bacteria and viruses
• PES membrane fibers with 7 bores – provides high mechanical strength (>10x that of single fibers) and chemical resistance
• Inside-Out filtration – eliminates air scouring step and additional related equipment
• Modules can be mounted vertically, or installed horizontally in pressure vessels. If used in horizontal orientation, two spacer rings per module are required, along with any permeate interconnectors
• Contact Complete Water Solutions for detailed drawings and assistance with sizing and ordering element housings

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Veolia
Series ZeeWeed Ultrafiltration
Model Number ZW700B-9060/UF10/7B/XA/0.8/55
Description Product Specifications Element Data

Description: ZW700B-9060/UF10/7B/XA/0.8/55
Material housing: PVC
Housing length: 1537.5 +/-1.0 mm (60.5 +/- 0.04 inch)
Permeate connection ID: 42.6 +/- 0.5 mm (1.7 +/-0.02 inch)
Element OD: 220 mm (8.66 inch)
Weight: 24 kg (53 lbs.)

Typical Process Conditions
Maximum operating temperature: 40°C (104°F)
Max. Operating Pressure, installed vertically with end-caps: 5 bar (72.5 psi)
Maximum operating pressure, installed horizontally in housing: *See specifications of membrane housing supplier
Trans Membrane Pressure (TMP), typ. operation: <1.0 bar (<14.5 psi)
TMP maximum: 2.5 bar (36 psi)
Backwash/forward flush: 250 lm2h (150 gfd)
pH range during operation: 2 to 11

Membrane Type
Material: PES
Type: SevenBore
Diameter bores ID: 0.8 mm (0.03 inch)
Area: 55 m² (592 ft²)

Cleaning
Cleaning pH range: 1.0-13.0
Disinfecting Chemical: 50 to 200 ppm
Hypochlorite (NaOCl) Hydrogen Peroxide: 100 to 200 ppm
