Description
Toray Pressurized UF Membrane Modules
Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module
Pressurized type has high surface area and can realize high flux operation, that can achieve smaller footprint UF system and higher cost performance.

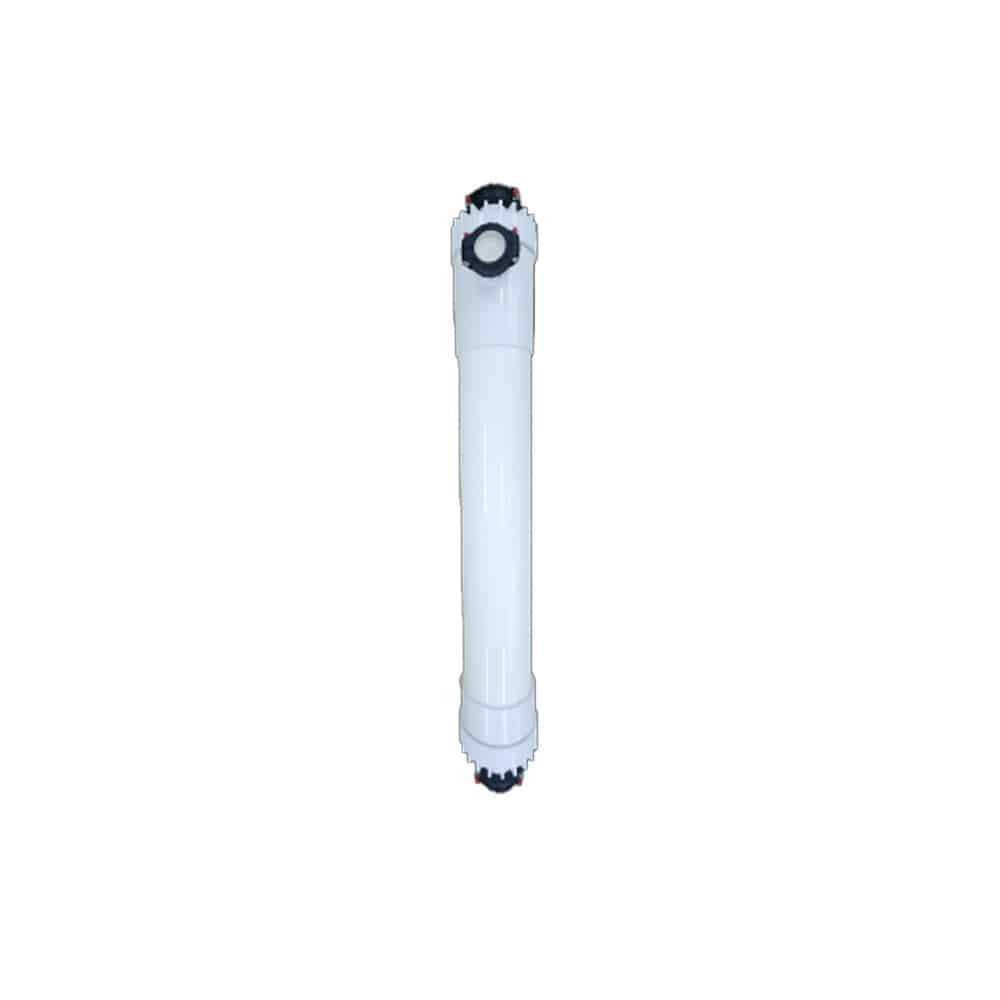

The HFUG-L1720AN module retains Toray’s unique mem brane fiber characteristics. These include high permeability, low fouling, and high mechanical strength. The HFUG-L1720AN module , which is shorter than the existing HFUG-2020AN module, is particularly suited to systems and/or equipment with height limitations. Its compact size not only allows for the tightest packing but also enhances the filtration performance of your equipment.
The possibility of the filtration of Ground Water, Surface Water, Sewage Secondary Effluent and Seawater allows a wide range of different applications:
- Drinking Water Production
- Tertiary Treatment of Sewage Water
- RO Pretreatment in Seawater Desalination
- Industrial Water Production
- Reuse of Industrial Waste Water
Toray’s Pressurized Series have been certified as an acceptable filtration technology for compliance with the following Certificates.
- AMST (Association of Membrane Separation Technology of Japan)
- NSF / ANSI / CAN 61
- NSF / ANSI 419
- CDPH (California Department of Public Health – Drinking Water Program)
- KWWA (Korea Water and Wastewater Works Association)
