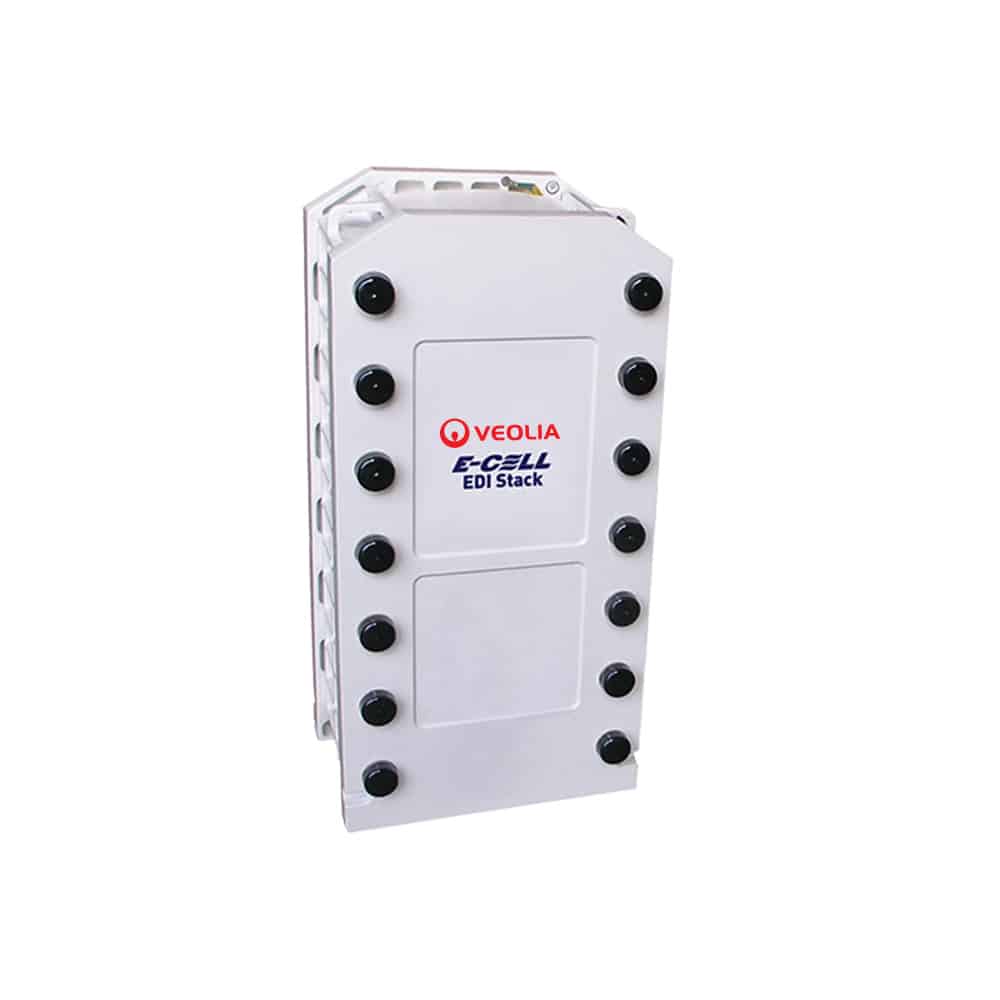

Veolia EDI E-Cell Stack | MK-3MiniHT | Part# 3044124

We ship to
Please login or register to see downloads

Description

General Description

As part of the E-Cell electrodeionization product line, the E-Cell EDI MK-3MiniHT stack is designed to:
• Use electrical current to provide ultrapure water for the pharmaceutical and biotechnology industries, as well as laboratories.
• Be hot water sanitizable up to 185ºF (85ºC) for 160 cycles
• Deliver premium performance including both the highest levels of product water quality and the lowest energy consumption.
• Minimize cleaning requirements at higher feed water hardness levels using counter-current operation.
• Be leak free, guaranteed
• Operate continuously and require no caustic or acid for regeneration of ion exchange resin within the stack.
• Require no brine injection or concentrate recirculation.

Typical Applications

The product water from the E-Cell EDI MK-3MiniHT can be used in small industrial applications and relied upon to exceed United States Pharmacopeia (USP), European Pharmacopoeia(EP) and other pharmacopeia required quality levels in applications such as:
• Water for injection
• Pharmaceutical purified water
• Laboratory purified water systems

Quality Assurance
• CE (European Conformity), RoHS (Restriction of Hazardous Substances), CSA (Canadian Standards Association) and EAC (Eurasian Economic Union) marked
• Materials in contact with fluids processed by the E-Cell EDI MK-3MiniHT stack meet U.S. Food and Drug Administration (FDA) requirements
• Certified with UK Conformity Assessed (UKCA)
• Manufactured in an ISO 9001 and ISO 14001 facility
• E-Cell EDI MK-3MiniHT Stacks are Halal certified by the Islamic Food and Nutrition Council of America (IFANCA®)

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Veolia
Series E-Cell
Model Number MK-3MiniHT
Part Number 3044124
Applications Typical Performance - Product Quality -
Resistivity: > 10 MOhm-cm
TOC: < 500 ppb
Hot Water Sanitization - No. of 1 hr sanitization cycles: 160 cycles
Sanitization temperature:176 to 185ºF / 80 to 85ºC
Max. sanitization inlet pressure: 2.1 bar 30 psi
Operating Parameters-
Recovery: Up to 92%
Concentrate flow: Counter current - Standard, Co-current – <0.1ppm (as CaCO3) feed hardness
Voltage: 0 to 150 VDC
Amperage: 0 to 5.2 ADC
Inlet Pressure (Counter current) - 60 to 90 psi (4.1 to 6.2 bar)
(Co-current) - 45 to 90 psi (3.1 to 6.2 bar)
Pressure drop at nominal flow: 20 to 35 psi (1.4 to 2.4 bar)

Maximum Feedwater Specifications:
Feedwater - Total Exchangeable Anions (TEA as CaCO3): <25 mg/l <25 ppm
Feedwater – Conductivity, NaHCO3 equivalent <43 μS/cm < 43 μS/cm
Temperature: 4.4 to 40ºC 40 to 104ºF
Total hardness (as CaCO3): < 1.0 mg/l < 1.0 ppm
Silica (SiO2): < 1.0 mg/l < 1.0 ppm
Total Organic Carbon, TOC as C: < 0.5 mg/l < 0.5 ppm
Total Chlorine: < 0.05 mg/l < 0.05 ppm
Description Nominal Flow: 5 gpm (1.14 m³/hr)
Flow Rate Range: 2.2 – 6.7 gpm (0.5 – 1.52 m³/hr)

Shipping Weight 107 lbs (49 kg)
Overall Length 11" (28 cm)
Overall Width 12" (30 cm)
Overall Height 24" (61 cm)
