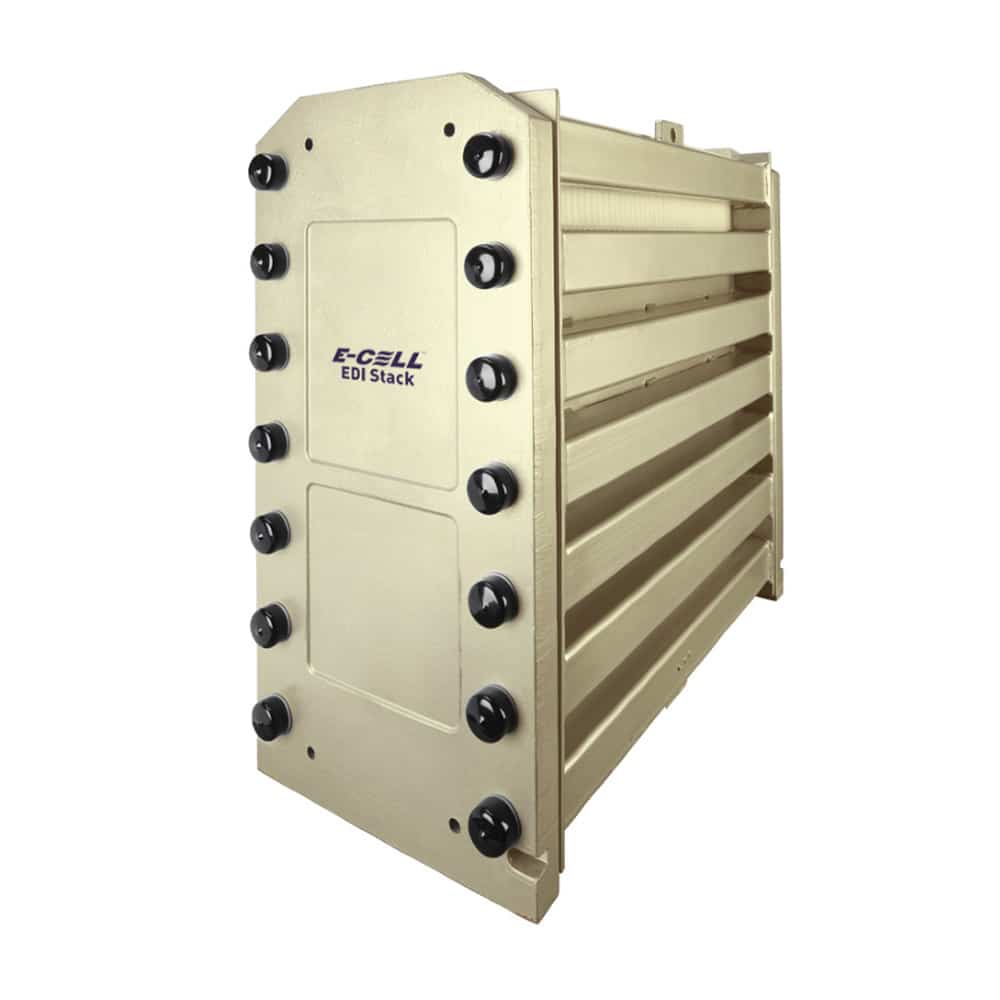

Veolia EDI E-Cell Stack | Model# MK-7 | Part# 3165143

We ship to
Please login or register to see downloads

Description

MK-7 is designed to
•Provide ultrapure water for industrial applications including power and general industry.
•Produce mixed bed quality water on a continuous basis.
•Require no caustic or acid for regeneration of ion exchange resin within the stack.
•Be leak free, guaranteed.
•Eliminate brine injection and concentrate re-circulation, simplifying system design.

Description and Use
MK-7 are high flow electrodeionization (EDI) stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. MK-7 product water is at an ultrapure level required in today’s most demanding applications.

Typical Applications
•Power Generation
•General Industry

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Veolia
Series E-Cell
Model Number MK-7
Part Number 3165143
Applications Typical Performance
Resistivity: > 16 MOhm-cm
Sodium: < 3 ppb
Silica (SiO2) Removal: Up to 99% or < 5 ppb
Boron Removal: > 95%

Operating Parameters
Recovery: Up to 97%
Concentrate Flow (vs. Product Flow): Countercurrent, hardness >0.10 ppm as CaCO3 Cocurrent, hardness ≤0.10 ppm as CaCO3
Voltage: 0 – 300 VDC
Amperage: 0 – 5.2 ADC
Inlet Pressure: 3.1–6.9 bar 45–100 psi
Pressure Drop: 1.4–2.8 bar 20–40 psi
Description Nominal Flow: 26 gpm (6.0 m3/hr)
Flow Rate Range: 18 – 34 gpm (4.2 – 7.8 m3/hr)
Maximum Flow : 34 gpm


Shipping Weight 300 lbs (137 kg)
Overall Length 26" (66 cm)
Overall Width 12" (30 cm)
Overall Height 24" (61 cm)
