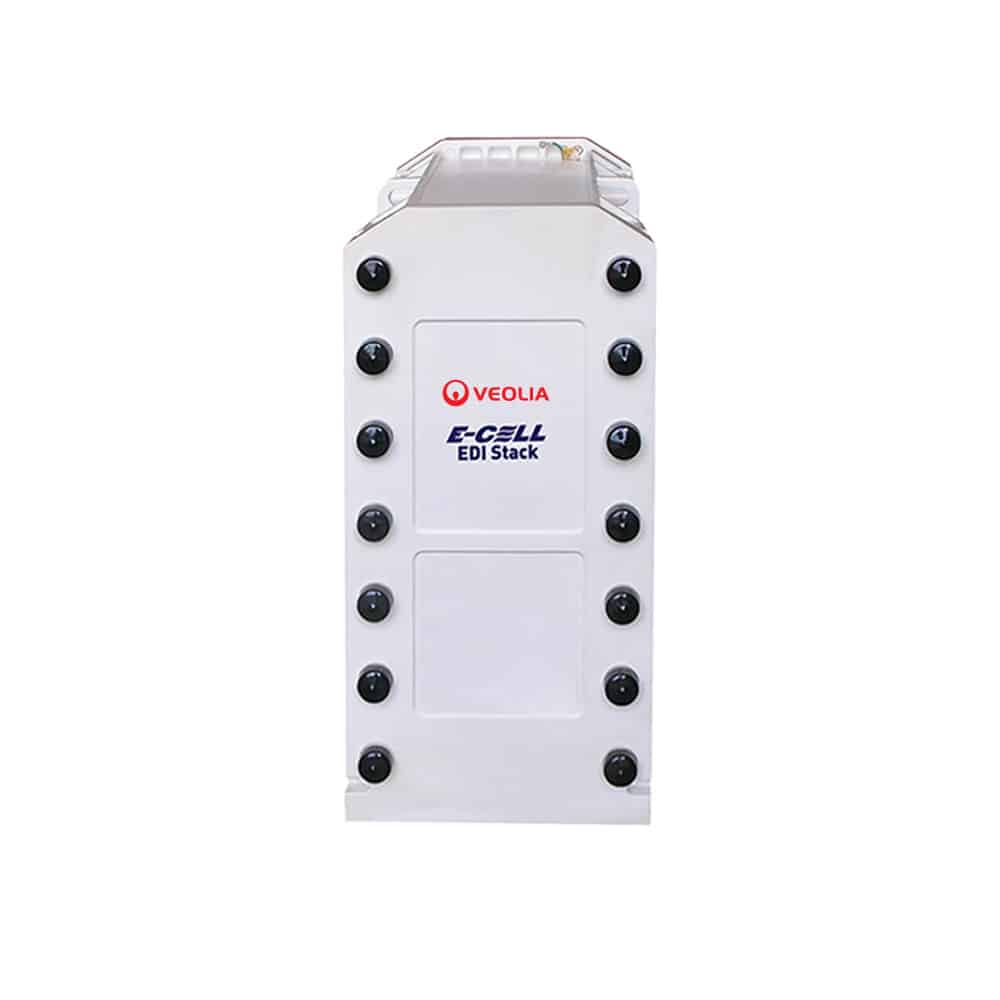

Veolia EDI E-Cell Stack | Model# MK-3PharmHT | Part# 3041772

We ship to
Please login or register to see downloads

Description

E-Cell MK-3PharmHT is the only pharmaceutical electrodeionization (EDI) stack designed to:
•Provide ultrapure water for pharmaceutical applications
•Hot water sanitizable up to 185ºF (85ºC) for 160 cycles
•Operate with no Concentrate re-circulation and no brine injection
•Require no stack bolt tightening
•Be leak free, guaranteed
•Operate at low power, <300VDC

Description and Use
E-Cell MK-3PharmHT Stacks are hot water sanitizable EDI stacks, which use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water quality for the MK-3PharmHT is at greater than USP quality levels required in today’s pharmaceutical applications.
Typical Applications
•Pharmaceutical
•Laboratory

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Veolia
Series E-Cell Stack
Model Number MK-3PharmHT
Part Number 3041772
Description Nominal Flow: 18 gpm
Flow Rate Range: 7 - 20 gpm

Shipping Weight 202 lbs (92 kg)
Key Features Typical Performance -Product Quality
Resistivity: >10 MOhm-cm
TOC: < 500 ppb
Hot Water Sanitization -
No. of 1hr sanitization cycles: 160 cycles
Sanitization temperature: 176 to 185ºF - 80 to 85ºC
Max. sanitization inlet pressure: 2.1 bar / 30 psi
Operating Parameters -
Recovery: Up to 96%
Concentrate flow Counter current - Standard Co-current – <0.1 ppm (as CaCO3) feed hardness
Voltage: 0 to 300 VDC
Amperage: 0 to 5.2 ADC
Inlet Pressure: Counter current- 4.1 to 6.2 bar Co-current- 3.1 to 6.2 bar 60 to 90 psi 45 to 90 psi
Pressure drop at nominal flow: 1.4 to 2.4 bar - 20 to 35 psi
Overall Length 19" (48 cm)
Overall Width 12" (30 cm)
Overall Height 24" (61 cm)
