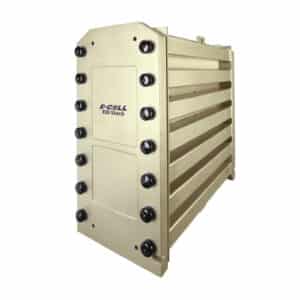

Veolia EDI E-Cell Stack | Model# E-Cell-3x | Part# 3057694

We ship to
Please login or register to see downloads

Description

Description and Use
E-Cell-3X Stacks are electrodeionization (EDI) stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water for the E-Cell-3X is at an Ultrapure level required in today’s most demanding applications.

Typical Applications
•Microelectronics
•Power Generation (NOx, Boiler Feed)
•General Industry

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Veolia
Series E-Cell
Model Number E-Cell-3X
Part Number 3057694
Applications Typical Performance
Resistivity: > 16 MOhm-cm
Sodium: < 3 ppb
Silica (SiO2) Removal: Up to 99% or < 5 ppb
Boron Removal: > 95%

Operating Parameters
Recovery: Up to 97%
Concentrate Flow (vs. Product Flow): Countercurrent, hardness >0.10 ppm as CaCO3 Cocurrent, hardness ≤0.10 ppm as CaCO3
Voltage: 0 – 300 VDC
Amperage: 0 – 5.2 ADC
Inlet Pressure: 3.1–6.9 bar 45–100 psi
Pressure Drop: 1.4–2.8 bar 20–40 psi
Description Nominal Flow: 22 gpm (5.0 m3/hr)
Flow Rate Range: 10 – 28 gpm (2.3 – 6.4 m3/hr)

Shipping Weight 298 lbs (135 kg)
Overall Length 26" (64 cm)
Overall Width 12" (30 cm)
Overall Height 24" (61 cm)
