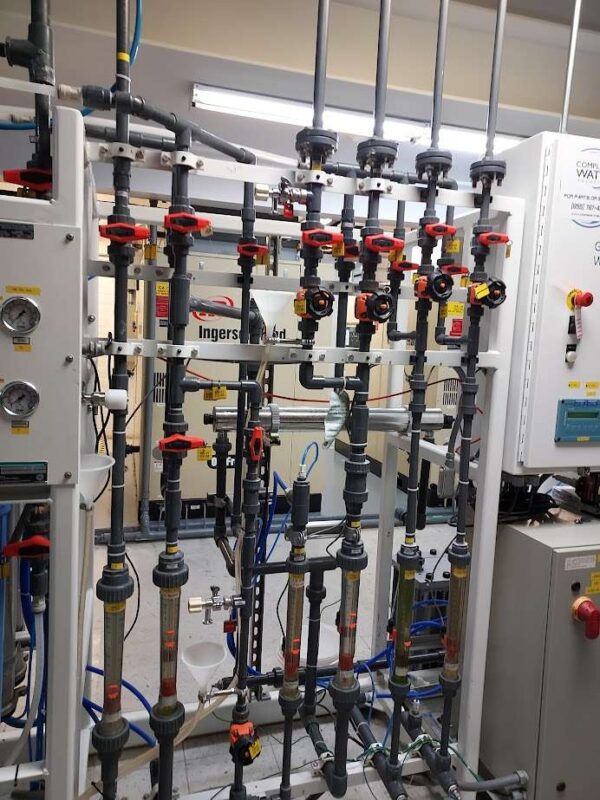

Osmonics 5 GPM RO / EDI System
Complete Water Solutions offers many different Reverse Osmosis Equipment available for short-term and long-term rentals, including the Osmonics 5 GPM RO / EDI System Rental Reverse Osmosis / EDI System (see Equipment Leasing for more info). Our highly skilled team can turn equipment around quickly and make sure it’s ready for you. Options available with your rental:
- Short & Long Term Contracts
- Consumables Included
- Installation & Setting Up of Equipment
- Onsite Operations Training Of Equipment
- Optional Onsite Operator (As little or As Often As Needed)
- Emergency Rental Options
Contact Us For Rental Rates
***** All Rentals Are Required To Sign A Rental Agreement Prior To Releasing Equipment For Rent
Items in the rental agreement include
- Length Of Contract
- Payment & Billing Information
- Insurance Requirements
- Deposit
- Prep Fee
- Decommissioning Fee
- Monthly Rental Charge
- Ancillaries and Consumable Pricing
*** Monthly Rental Rates Are Estimated And May Adjust With Term, Application, Market Demand, And Are Subject To Change. Monthly Rental Rates Do Not Include Consumables, Service, Tax, Installation, Freight, Commissioning Or Decommissioning Charges.
Specifications
Specifications
| Manufacturer |
Osmonics |
| Model Number |
E4-13200-DLX-EDI ECELL MK-3 |
| Description |
The RO / EDI System is complete on one (1) skid. The unit is sized to produce 5 GPM of DI / DILUTE water.
1.0 CAPACITY (FLOW RATES)
Feed Flow Rate (Design): 7.5 GPM
Permeate Rate (Design): 5.6 GPM (FIS-01)
Concentrate Rate (Design): 1.87 GPM (FI-01)
Total Flow Rate (Design): 16 GPM
Recycle Rate (Design): 8.5 GPM
DILUTE Rate: 5.0 GPM (FIS-03)
CONCENTRATE MAKEUP Rate: 0.6 GPM (FIS-02)
CONCENTRATE BLEED: 0-0.3 GPM (FIS-04)
ELECTRODE OUTLET: 0.3-0.6 GPM (FIS-05)
2.0 RO PRESSURES
Inlet Pressure (Minimum): 30 PSIG
Inlet Pressure (Maximum): 60 PSIG
Primary Pressure (Design): 255 PSIG
Final Pressure (Design): 236 PSIG
EDI Pressures: Conc inlet and outlet always lower pressure that
dilute inlet and outlet.
3.0 PIPE SIZES
Inlet: 0.75 IN
Permeate Outlet: 0.50 IN
Concentrate Outlet: 0.50 IN
Recycle: 0.50 IN
4.0 OVERALL DIMENSIONS
Length: 104
Width: 34
Height: 86
5.0 POWER REQUIRED
Control Voltage: 110 VAC 60 Hz 10 AMPS
RO Pump: 460VAC 60Hz 8 FLA
EDI RECTIFIER: 460VAC 60Hz 15 AMPS
6.0 OPERATIONAL PARAMETERS
Recovery: 72 - 78 Inlet Pressure (Low Set Point): 12 PSIG
Temperature (Design): 60 oF
Temperature (High Set Point): 105 oF
7.0 MEMBRANE ELEMENTS
Model: AG4040T1305
Quantity: 6
Banking Arrangement: 2-2-1-1
8.0 PUMPS
Pump Model: SS1823X
Motor Horsepower: 5.0
9.0 FILTER CARTRIDGES
Filter Housing Model: 20" PPL
Micron rating: 5
Filter Cartridge Model: RO.ZsGX05-20
Quantity: 1 |
| Flow Rate |
DI Water 5 GPM |
| Inlet/Outlet Connection Size |
1" |
| Inlet/Outlet Connection Type |
Cam Lock |
| Maximum Operating Pressure |
60-80 PSI |
| Shipping Weight |
2100 LBS |
| AC Voltage |
460V |
| Electrical Phase |
3 Phase |
| Frequency |
60Hz |
| Operating Temperature |
77 Degree F |
| Continuous Service Flow Rates |
5 GPM |
| Service Pipe Size |
1" |
| Drain Pipe Size |
1" |
| Overall Length |
104" |
| Overall Width |
34" |
| Overall Height |
86" |
