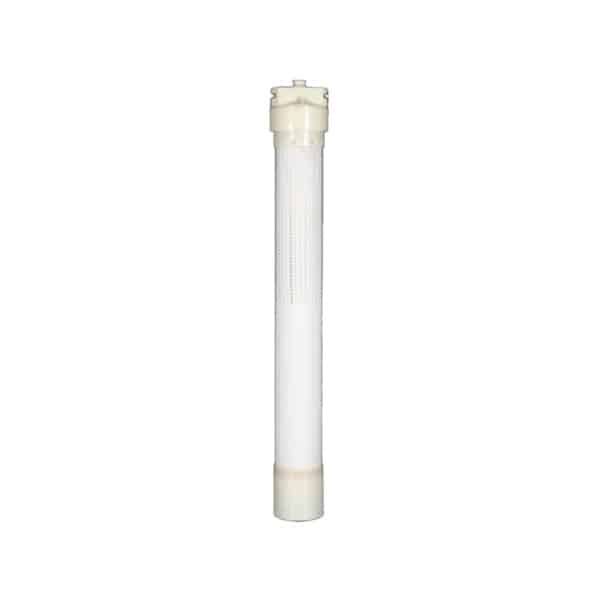

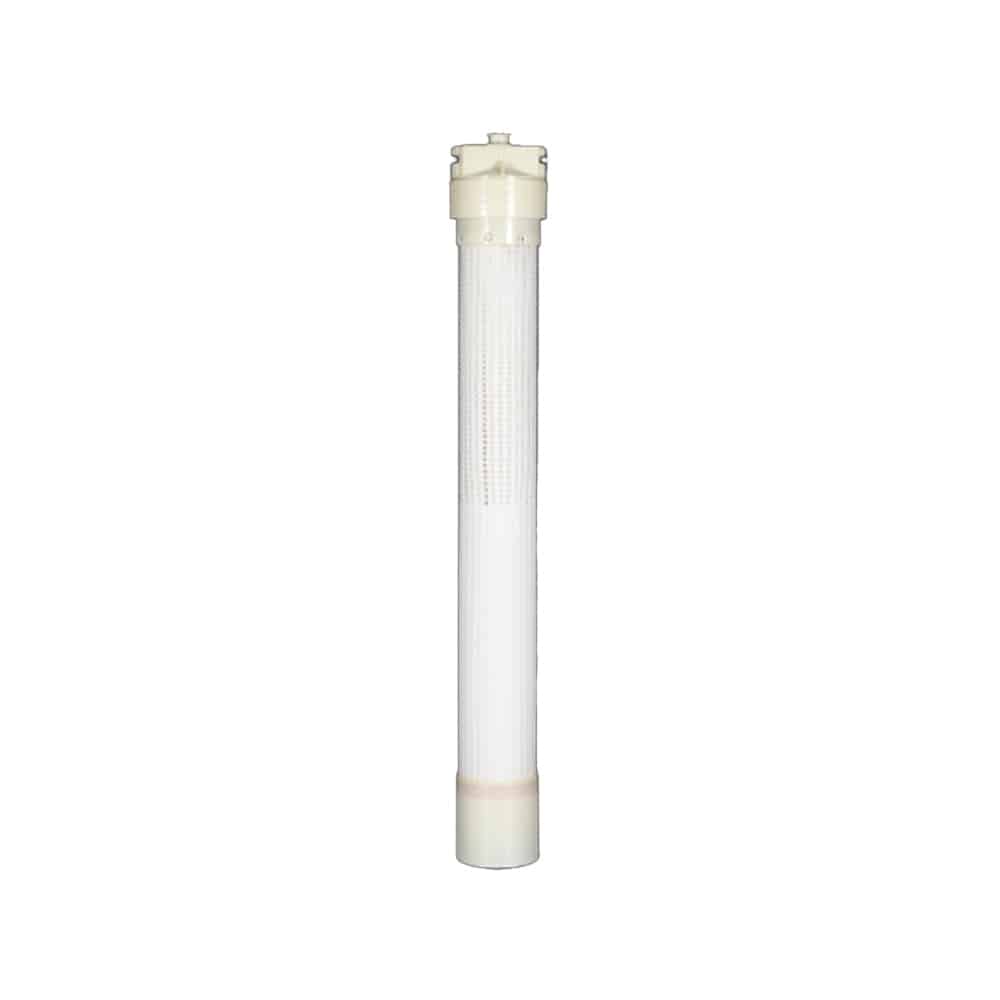

Toray Submerged UF Membrane HSU-1515

Submerged Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module

The material of Toray’s Hollow Fiber (HF) Submerged Ultrafiltration (UF) elements is PVDF (Polyvinylidene fluoride). This best grade HF membrane material provides high mechanical strength and chemical resistance (oxidation, pH).

The submerged filtration method is ideal for treating feed water with high turbidity because of effective drainage and sludge removal. No pressure casing, less piping, and fewer valves can reduce capital costs and minimizes footprint requirements.

The possibility of the filtration of Ground Water, Surface Water, Sewage Secondary Effluent and Seawater allows a wide range of different applications:

  • Tertiary Treatment of Sewage Water
  • Industrial Water Production
  • Reuse of Industrial Waste Water

Why Submerged Type UF Membrane

This type of UF membrane is operated submerged in a tank with a low pressure suction pump applied to the filtrate to the filtrate side of the hollow fibers.

For High Turbidity Feed Water
The submerged filtration method is suitable for the filtration of high turbidity water because of it’s effective drainage and removal of sludge.

For Large-scale Water Treatment Plants
No pressure casing, less piping and fewer valves can reduce construction costs, and the compact design of submerged systems minimizes footprint requirements.

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Toray
Series UF Submerged HSU Series
Model Number HSU-1515
Part Number HSU-1515
Description Toray submerged Outside to In / Dead-end Filtration Ultrafiltration HSU-1515 (UF) Membrane Module

Applications
Drinking water
Industrial process water
Pretreatment for seawater RO desalination
Tertiary wastewater

Membrane Characteristics
Membrane Material: PDVF (Polyvinylidene fluoride)
Nominal Pore Size: µm 0.01
Outer Membrane Surface Area: m² (ft²) 20 (215)

Operating Parameters
Maximum Feed Water/filtrate Flow: m³/h (gpm) 20 (8.8)
Maximum Backwash Flow m³/h (gpm) 3.0 (13.2)
Maximum Air Flow Nm³/h (scfm) 4.5 (2.6)
Maximum Backwash Pressure kPa (psi) 200 (29.0)
Normal Operating Transmembrane Pressure kPa (psi) 0–100 (0–14.5)
Operating Temperature Range °C (°F) 1–40 (34–104)
pH range During Filtration: 1–10
pH Range During Cleaning: 0–12

Dimensions
Diameter: 5.79 in. (147 mm)
Length: 4.35 ft. (1,327 mm)
Weight full of water: 31 lbs (14 kg)
Weight after draining: 22 lbs (10 kg)
