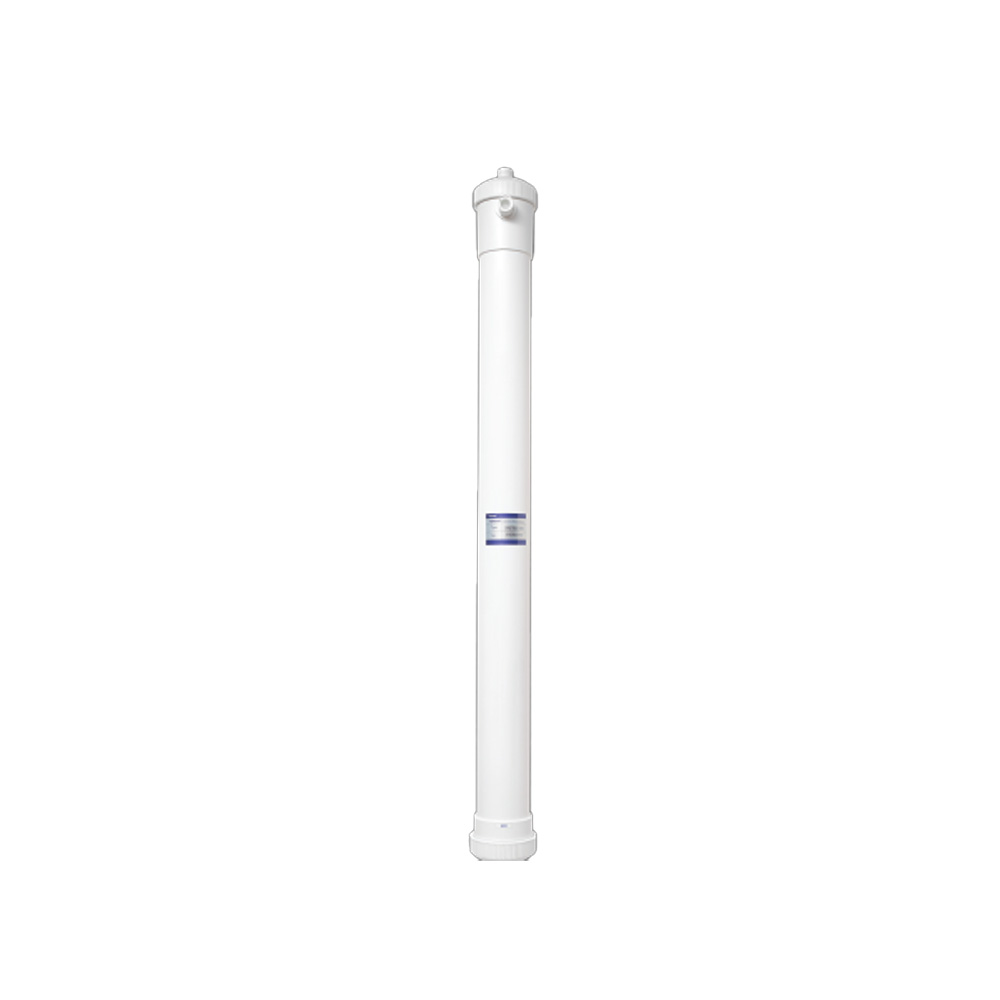

Toray UF Membrane Module | Pressurized Type | HFUG-B2315AN

We ship to
Please login or register to see downloads

Description

Toray Pressurized UF Membrane Modules

Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module

Pressurized type has high surface area and can realize high flux operation, that can achieve smaller footprint UF system and higher cost performance.

The HFUG-B2315AN module is Toray’s latest UF innovation that features hollow fibers with a smaller diameter but with improved membrane durability and performance. The result is an increased surface area per module for more production output.

The possibility of the filtration of Ground Water, Surface Water, Sewage Secondary Effluent and Seawater allows a wide range of different applications:

  • Drinking Water Production
  • Tertiary Treatment of Sewage Water
  • RO Pretreatment in Seawater Desalination
  • Industrial Water Production
  • Reuse of Industrial Waste Water

Toray’s Pressurized Series have been certified as an acceptable filtration technology for compliance with the following Certificates.

  • AMST (Association of Membrane Separation Technology of Japan)
  • NSF / ANSI / CAN 61
  • NSF / ANSI 419
  • CDPH (California Department of Public Health – Drinking Water Program)
  • KWWA (Korea Water and Wastewater Works Association)

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Toray
Series UF Pressurized HFUG Series
Model Number HFUG-B2315AN
Part Number HFUG-B2315AN
Description Toray pressurized Outside to In / Dead-end Filtration Ultrafiltration HFUG-2020HN (UF) Membrane Module

Applications
Drinking water
Industrial process water
Pretreatment for seawater RO desalination
Tertiary wastewater

Membrane Characteristics
Membrane Material: PDVF (Polyvinylidene fluoride)
Nominal Pore Size: µm 0.01
Outer Membrane Surface Area: m² (ft²) 75 (807)

Operating Parameters
Maximum Feed Water/filtrate Flow: m³/h (gpm) 12.5 (55)
Maximum Backwash Flow m³/h (gpm) 13.8 (61)
Maximum Air Flow Nm³/h (scfm) 6.7 (3.9)
Maximum Inlet Pressure kPa (psi) 300 (43.5)
Maximum Backwash Pressure kPa (psi) 300 (43.5)
Normal Operating Transmembrane Pressure kPa (psi) 0–200 (0–29)
Operating Temperature Range °C (°F) 1–40 (34–104)
pH range During Filtration: 1–10
pH Range During Cleaning: 0–12

Dimensions
Diameter: 7.01 in. (178 mm)
Length: 7.651 ft. (2,332 mm)
Weight full of water: 143 lbs (65 kg)
Weight after draining: 35 lbs (77 kg)
