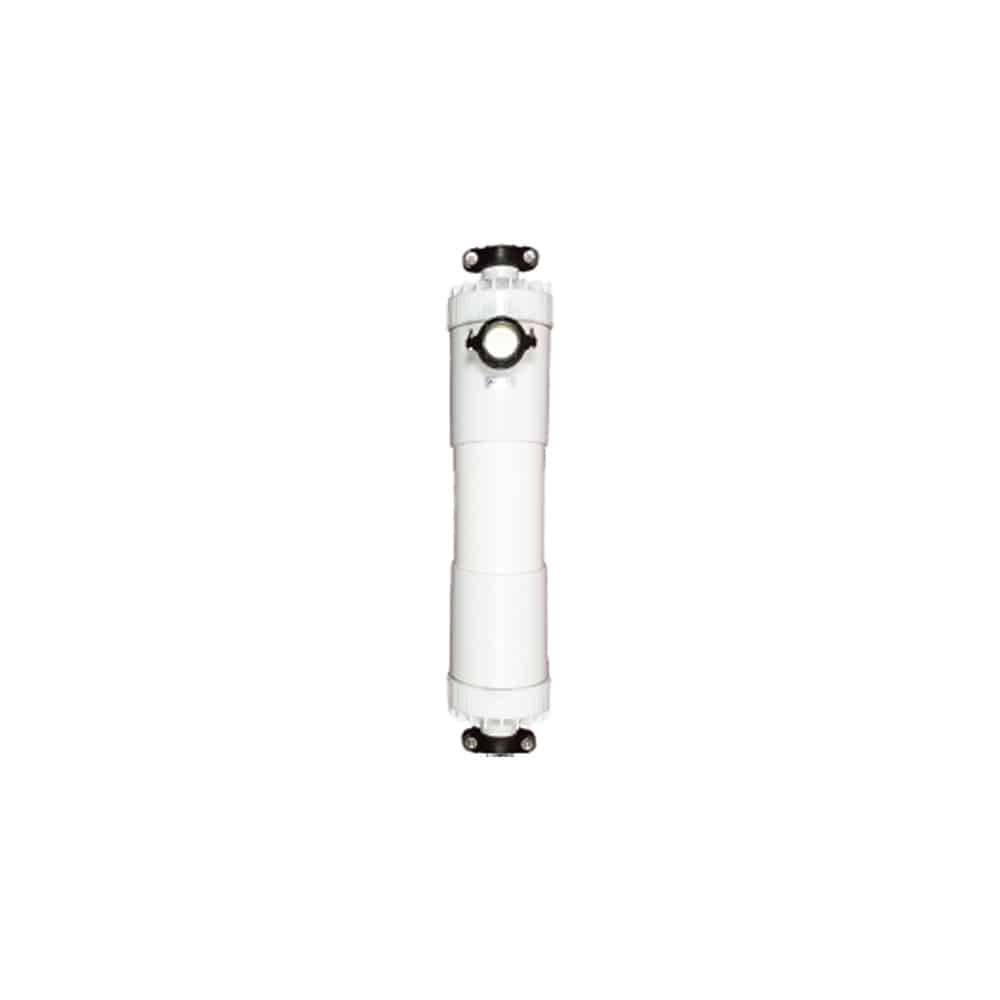

Toray UF Membrane Module | Pressurized Type | HFU-1020AN

We ship to
Please login or register to see downloads

Description

Toray Pressurized UF Membrane Modules

Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module

Pressurized type has high surface area and can realize high flux operation, that can achieve smaller footprint UF system and higher cost performance.

Toray’s hollow fiber PVDF UF membrane effectively removes suspended solids and microorganisms such as pathogens when used for various types of water treatment.  The flux rates or HFU-1020AN modules are ideal for smaller commercial systems.

The possibility of the filtration of Ground Water, Surface Water, Sewage Secondary Effluent and Seawater allows a wide range of different applications:

  • Drinking Water Production
  • Tertiary Treatment of Sewage Water
  • RO Pretreatment in Seawater Desalination
  • Industrial Water Production
  • Reuse of Industrial Waste Water

Toray’s Pressurized Series have been certified as an acceptable filtration technology for compliance with the following Certificates.

  • AMST (Association of Membrane Separation Technology of Japan)
  • NSF / ANSI / CAN 61
  • NSF / ANSI 419
  • CDPH (California Department of Public Health – Drinking Water Program)
  • KWWA (Korea Water and Wastewater Works Association)

Specifications

Looking for downloads for this product? Follow the two simple steps below.

Step 1
LoginorCreate Account
Step 2

View downloads!

Downloads

Specifications

Manufacturer Toray
Series UF Pressurized HFUG Series
Model Number HFU-1020AN
Part Number HFU-1020AN
Description Toray pressurized Outside to In / Dead-end Filtration Ultrafiltration HFU-1020AM (UF) Membrane Module

Applications
Drinking water
Industrial process water
Pretreatment for seawater RO desalination
tertiary wastewater

Membrane Characteristics
Diameter (inch): 8
Membrane Material: PDVF (Polyvinylidene fluoride)
Nominal Pore Size: µm 0.01
Outer Membrane Surface Area: m² (ft²) 29 (312)

Operating Parameters
Maximum Feed Water/filtrate Flow: m³/h (gpm) 4.8 (21)
Maximum Backwash Flow m³/h (gpm) 5.4 (23)
Maximum Air Flow Nm³/h (scfm) 9.0 (5.3)
Maximum Inlet Pressure kPa (psi) 300 (43.5)
Maximum Backwash Pressure kPa (psi) 300 (43.5)
Normal Operating Transmembrane Pressure kPa (psi) 0–200 (0–29)
Operating Temperature Range °C (°F) 1–40 (34–104)
pH range During Filtration: 1–10
pH Range During Cleaning: 0–12

Dimensions
Diameter: 8.5 in. (216 mm)
Length: 3.675 ft. (1,120 mm)
Weight full of water: 51 lbs (112 kg)
Weight after draining: 71 lbs (32 kg)
