Description
TMHA Series
Ultra-Low Pressure Brackish Water Reverse Osmosis (RO) Membrane Element

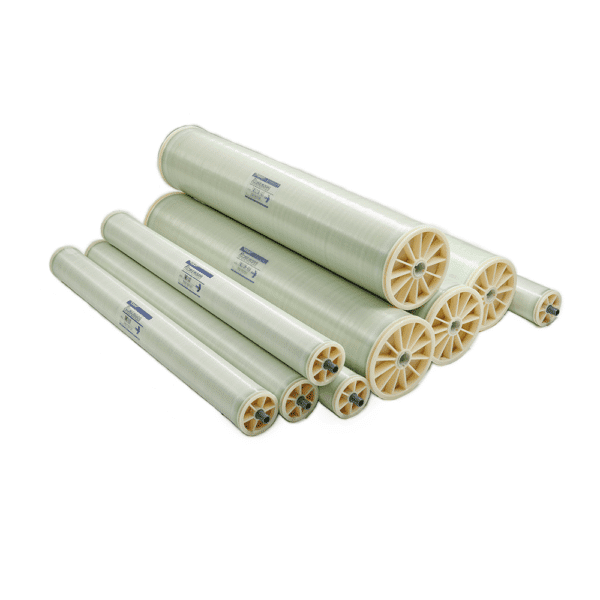

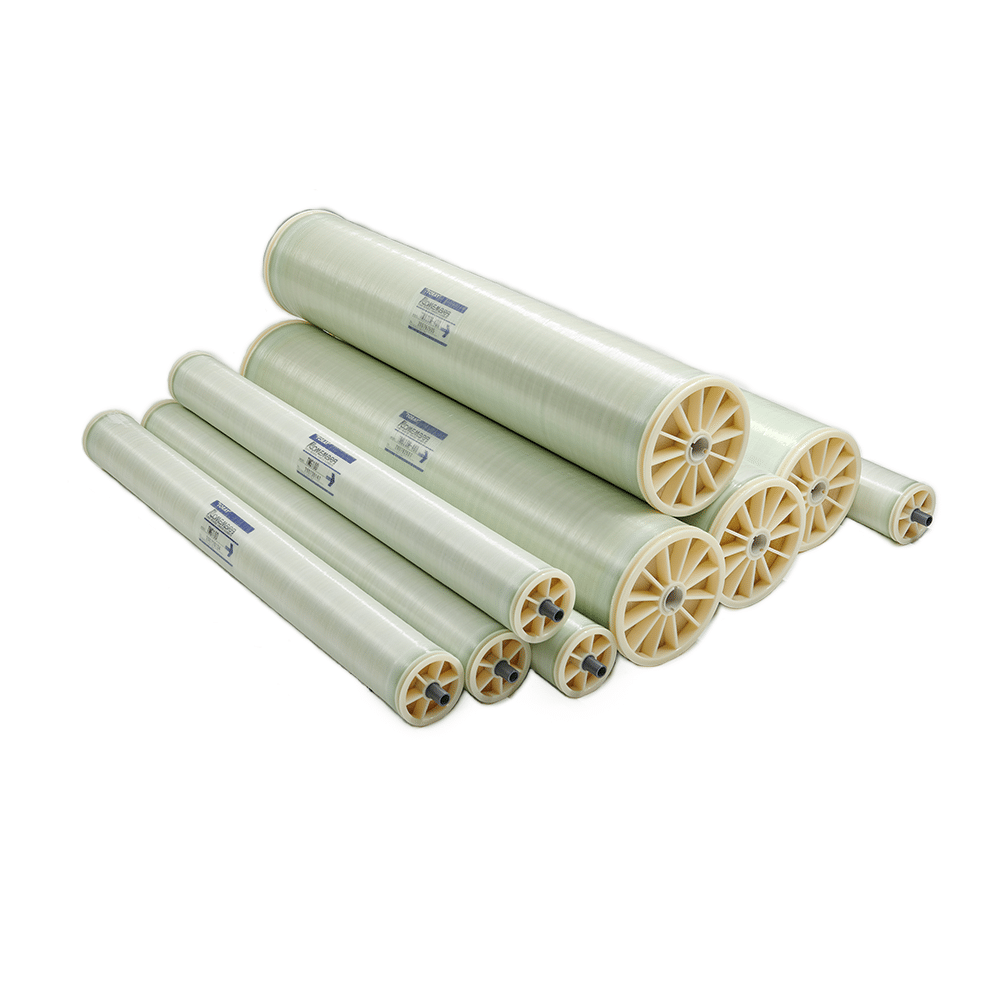

Toray RO membranes (available in 4-inch, 8-inch, and 16-inch diameters) are used for municipal, industrial, and commercial applications.
Toray’s reverse osmosis membrane technology applies decades of R&D and precision automated manufacturing under ISO 9001 for consistency in product quality. State-of-the-art cross-linked fully aromatic polyamide composite membranes produce high-quality permeate and robust membrane chemistry for improved performance and longer membrane life.
Specifications
Specifications
| Manufacturer |
Toray |
| Series |
Brackish Water |
| Model Number |
TM - Inner Connector Type |
| Part Number |
TMH20A-440C |
| Description |
Toray Brackish Water TMHA Series (Ultra Low Pressure) TMH20A-440C Membrane
Applications
Municipal Drinking Water,
Industrial process water,
Water Reuse
Product Specifications
Size: 8040
Diameter (inch): 8
Membrane Area ft²(m²): 440 (41)
Nominal Salt Rejection: 99.3%
Minimum Sale Rejection: 99.0%
Product Flow Rate gpd (m³/d): 12,100 (45.7)
Min. Product Flow Rate gpd (m³/d): 9,700 (36.7)
Feed Spacer Thickness mil: 28
Test Conditions:
Feed water pressure 100 psi (0.69 MPa);
Feed water temperature 77 °F (25°C);
Feed water concentration 500 mg/L as NaCl;
Recovery rate 15%;
Feed water pH 7
Dimensions in . (mm)
A: 7.9 (201)
B: 40 (1,016)
C: 1.125 (29)
D: ---------
Products manufactured at Toray U.S. facility (TMUS) are certified to NSF/ANSI 61 for drinking water applications. |
