Description

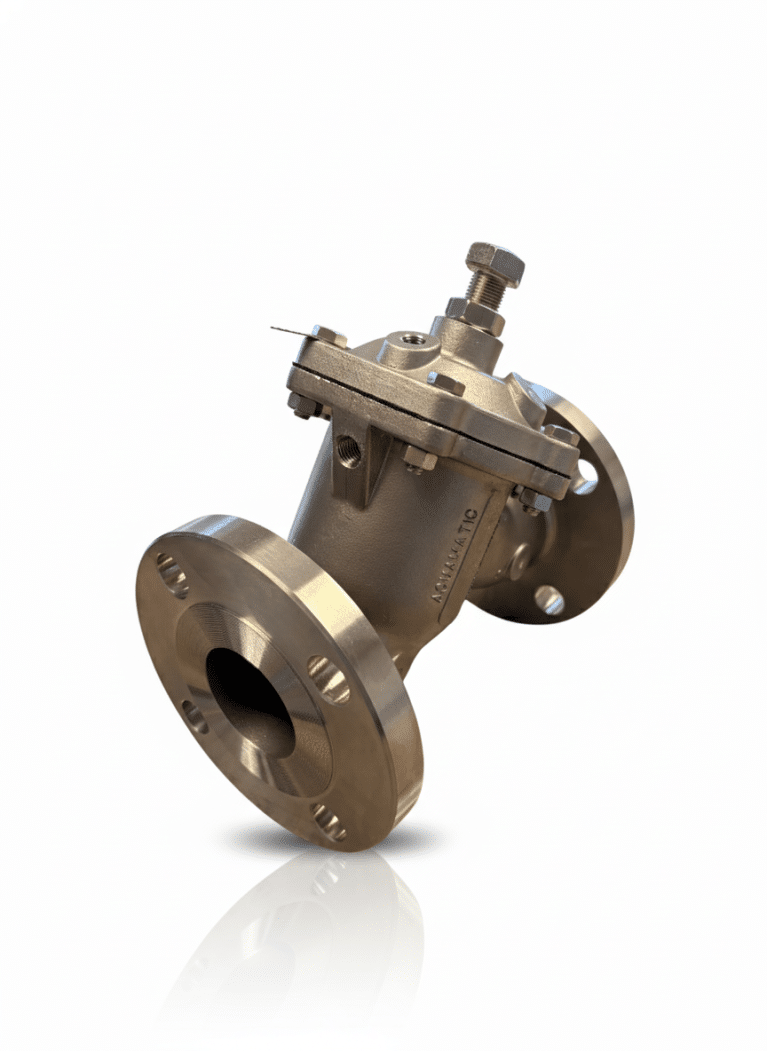

AQ MATIC V46 Stainless Steel Control Valves
High flow valves for corrosion resistant applications
Features and Benefits
- The unique Y-pattern design with large seat opening and high lift disc permits higher flow rates at lower pressure loss than other comparable valves
- All components can be serviced while the valve is in-line
- Separate flow and control chambers permit positive closing without springs
- Pre-formed, stress-relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
- Durable stainless steel [CF8M] corrosion resistant alloy, all metal internal parts machined from 316 stainless steel alloy
- Diaphragm acts as an actuator, eliminating the need for electric or pneumatic actuators
- Adaptable to a wide variety of control devices
Options
- Spring-assist closed
- Spring-assist open
- Limit stop for flow control
- Normally Closed
- Seal and diaphragm materials for special applications
- Available in threaded or flanged end configurations
Typical Applications
- Bottling Plants
- Chemical Injection
- Condensate Polishers
- Corrosive Liquid Handling
- Deionizers
- Laundry Equipment
- Ozone Generators
- Paper and Pulp Process
- Water Systems
- Reverse Osmosis Equipment
- Steam Sterilization
