Description

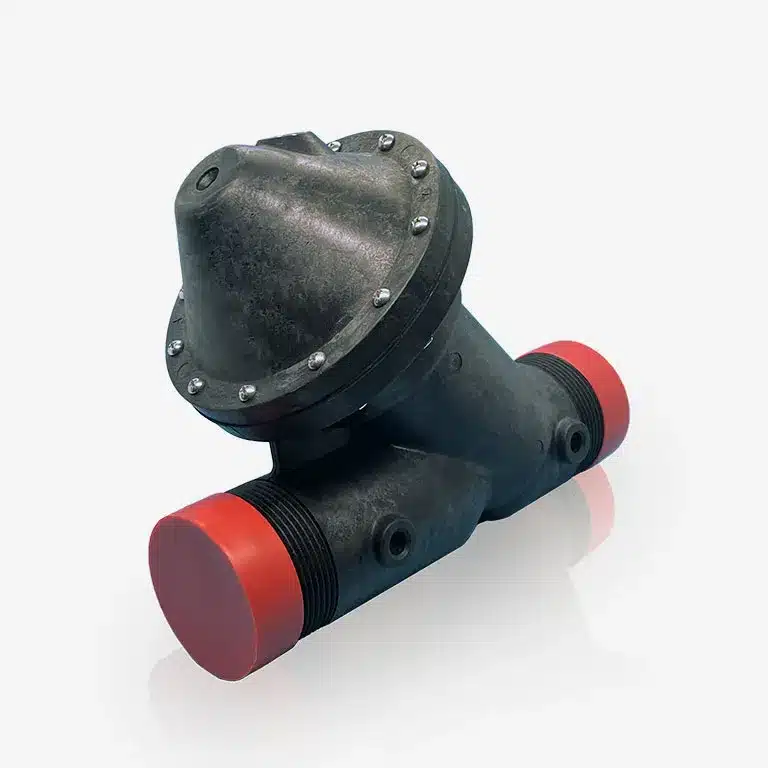

AQ MATIC K52 Series Composite Control Valves
Constructed of corrosion-resistant materials
Features and Benefits
• The unique Y-pattern design with large seat opening and high lift disc permits higher flow rates at lower pressure loss than other comparable valves
• All components can be serviced while the valve is in-line
• Separate flow and control chambers permit positive closing without springs
• Pre-formed, stress-relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
• Diaphragm acts as an actuator, eliminating the need for electric or pneumatic actuators
• All internal parts in contact with media are made of composite materials*
• Seals are ethylene propylene for better chemical resistance**
• K52 Series Valves are available in sizes from 1/2″- 2″
• A variety of available end connectors make the valve compatible for 3/8″-3″ pipe sizes
• Adaptable to a wide variety of control devices
Options
• Normally open [standard]
• Normally closed*
• Spring-assist closed
• Spring-assist open
• Limit stop for flow control
• Position indicator
• Seal and diaphragm materials for special
applications
• Union End Connectors – Female socket weld connectors for easy installation and the ability to remove the valve without disrupting the service piping
Typical Applications
• Chemical Injection
• Deionizers
• Desalinization
• Detergent and Bleach Handling
• Electronic Industry
• Evaporation
• Fertilizer Spray Equipment
• Level Control Systems
• Metal Recovery Systems
• Mining Wastes
• Process Water Systems
• Water Treatment Systems
