Description

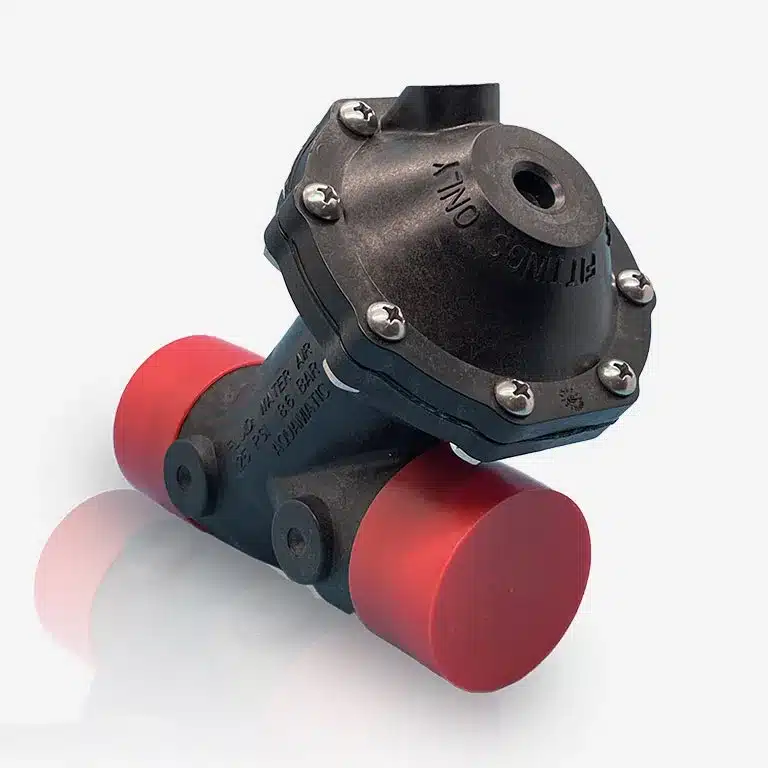

AQ MATIC K52 Series Composite Control Valves
Constructed of corrosion-resistant materials
Features and Benefits
- The unique Y-pattern design with large seat opening and high lift disc permits higher flow rates at lower pressure loss than other comparable valves
- All components can be serviced while the valve is in-line
- Separate flow and control chambers permit positive closing without springs
- Pre-formed, stress-relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
- Diaphragm acts as an actuator, eliminating the need for electric or pneumatic actuators
- All internal parts in contact with media are made of composite materials*
- Seals are ethylene propylene for better chemical resistance**
- K52 Series Valves are available in sizes from 1/2″- 2″A variety of available end connectors make the valve compatible for 3/8″-3″ pipe sizes
- Adaptable to a wide variety of control devices
*Normally closed valve configurations are NOT recommended when used with corrosive fluids.
** Valves are NOT recommended for use with any aromatic, hydrocarbon-based media.
Options
- Normally open [standard]
- Normally closed*
- Spring-assist closed
- Spring-assist open
- Limit stop for flow control
- Position indicator
- Seal and diaphragm materials for special applications
- Union End Connectors – Female socket weld connectors for easy installation and the ability to remove the valve without disrupting the service piping
Typical Applications
- Chemical Injection
- Deionizers
- Desalinization
- Detergent and Bleach Handling
- Electronic Industry
- Evaporation
- Fertilizer Spray Equipment
- Level Control Systems
- Metal Recovery Systems
- Mining Wastes
- Process Water Systems
- Water Treatment Systems
