Description
AQ Matic F Series ultrasonic meters provide accurate flow measurement with no moving parts.
– 316SS Meter Body
– Operating temperature up to 100° F (38°C)
– Three wire cable provided with all meters (Red = +5 to 24VDC, Blue = Signal, Black = Ground)
Variation:Â BSP

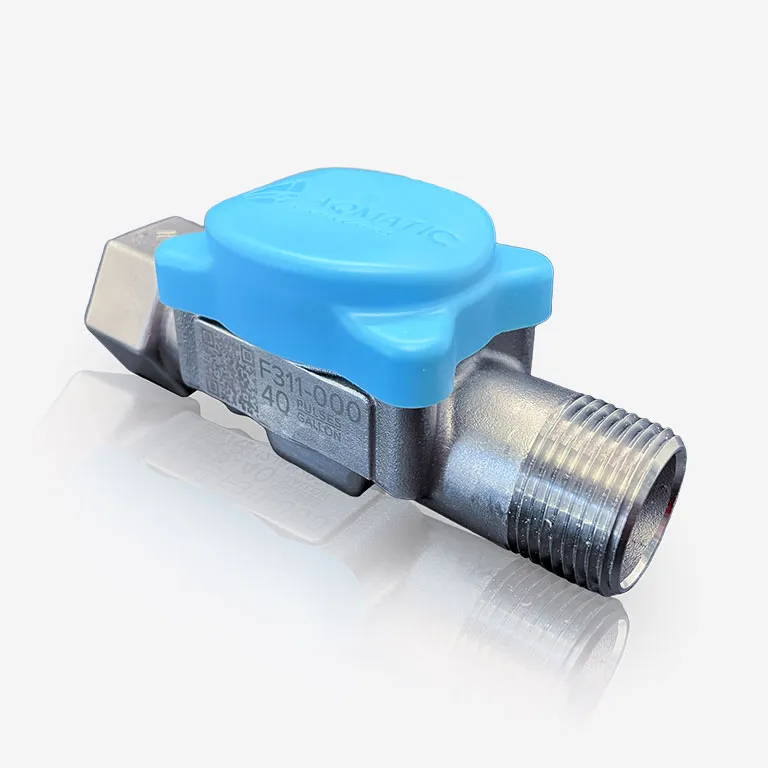

Model: F311
Pipe Size: 1.0″
Low Flow Threshold:Â .12 gpm (.45 Lpm)
Typical Flow (0.1 ft/sec to 10 ft/sec): 0.3 – 24.5 gpm (1.1 – 93 Lpm)
Max Flow (16ft/sec):Â 39 gpm (147 Lpm)
K Factor (Pulses/Gal):Â 40 (10.57/Liter)
